 LINEAR STRIP BRUSHES

The base metal U-section allows to realize high-density brushes.


 REQUEST FOR OFFER (RFO)

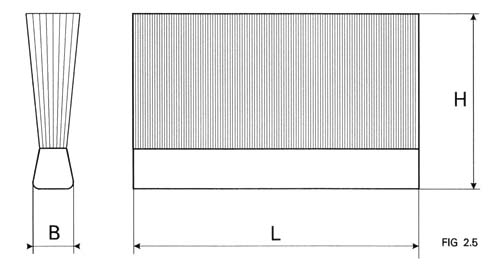

For orders and requests for quotations please fill in Table 2.4 whose symbols refer to Fig 2.5.
For assembly of a linear single band brush two different types of profile section are available, both made of heavy galvanized steel. Type (a) is designed for welding to the metal support, while type (b) is installed with screws.
Available dimensions are shown in table 2.5.
The standard length of the holder is 1000mm except for the B=5 model (b) that is 2500mm.


TAB 2.5 - Dimensions of holder type (a)

B

8

10

13

14

20

BS

13

14

19

19

24

TS

12

12

15

15

27

MAT.

S-X

S-X

S-X

S-X

S


TAB 2.5 - Dimensions of holder type (b)

B

4

5

8

10

13

14

BS

6.5

8.1

13

14

19

19

TS

6.5

8.8

12

12

17

17

HS

17.5

24.8

30

30

38

38

MAT.

A-AN

A-AN

S

S-X

S

S

Materials Legend (tab 2.5 a/b)

S

GALVANIZED STEEL

X

STAINLESS STEEL

A

ALUMINIUM

AN

BLACK ANODIZED ALUMINIUM


 TABLE 2.4
 N° pieces
GALVANIZED BASE STAINLESS BAS
B=
mm
H=
mm
L=
mm
 FILAMENT MATERIAL
 FILAMENT DIAMETER
d=
mm
straightcrimpedwhiteblack
HOLDER MODEL (a) HOLDER MODEL (b)

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
